FutureMatrix S1730S-S8P4S-A1

FutureMatrix 1730S-S8P4S-A1 overview
Huawei FutureMatrix S1730S-S8P4S-A1 switch comes with 8 PoE+ 10/100/1000BASE-T ports, 4 GE SFP ports, and 1 fixed AC power, which is one of the Huawei FutureMatrix S1730S-S series switches.

FutureMatrix S1730S-S series switches are web-managed Ethernet switches for the SOHO office market. They have been certified by Huawei Datacom Smart Selection, and can provide 8, 24 and 48 port models, with 4 gigabit or 10-gigabit uplink ports.

S1730S-S series switches can be used as access switches for small networks (such as small business offices), and support S5700 series switches to create an office network for small and micro enterprises. It can meet the data access requirements of wired and wireless networks.

S1730S-S series switches can be used as access switches for micro-site networks (such as small studios), meeting a small number of terminals such as printers, notebooks, cameras, and wireless routers, data access, and power supply requirements of other equipment.

FutureMatrix 1730S-S8P4S-A1 fast spec
8-port 10/100/1000BASE-T RJ45

4-port 1000BASE-X GE SFP

1 fixed AC input power supply

Switching capacity: 336Gbps

Packet forwarding rate: 18Mpps

PoE+ supported

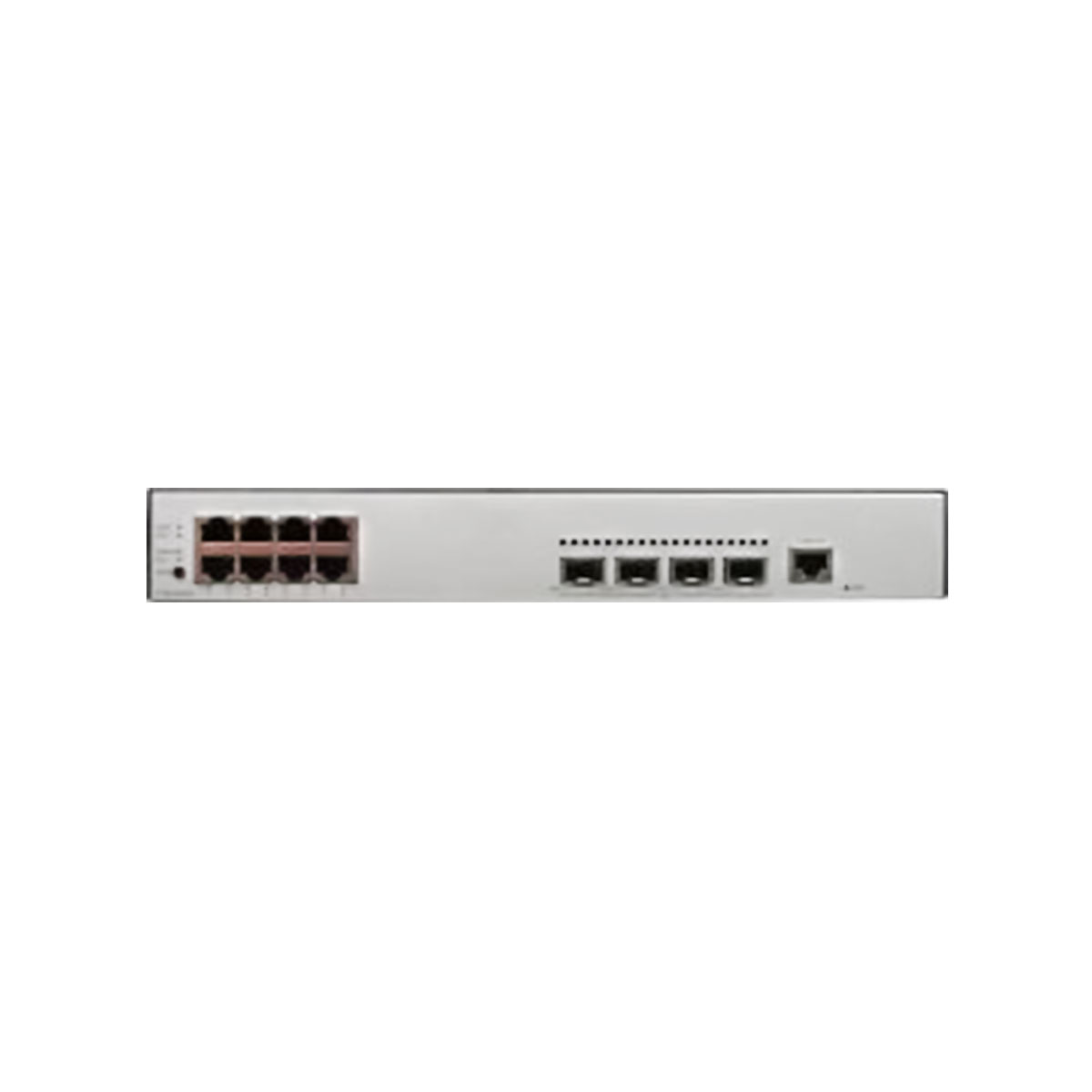

FutureMatrix S1730S-S8P4S-A1 appearance

1 Eight PoE+ 10/100/1000BASE-T ports 2 Four 1000BASE-X ports
3 One console port 4 One RST button
NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the button.

5 Ground screw 6 AC socket
7 Jack for AC power cable locking strap
NOTE: The AC power cable locking strap is not delivered with the switch.

– –

FutureMatrix S1730S-S8P4S-A1 features and benefits
New energy-saving design, leading low-carbon communication

Non-blocking high-speed forwarding

PoE power supply capability: Fast PoE, Permanent PoE.

Convenient operation and maintenance

Intelligent operation and maintenance

Smart upgrade

Excellent safety

Powerful networking and bandwidth expansion capabilities
